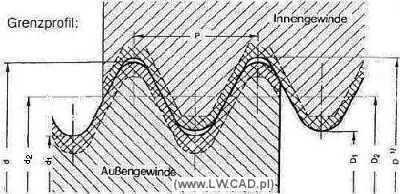

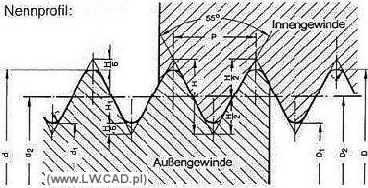

Gewinde- Nenn-F
(inch) |
Gang- zahl/1"
Z |
Steigg.
P |
Nenn- Auß.-FD
=D min. |
Mutterflanken-F D2 |
Mutterkern-F D1 |
Nenn-Fl.F =D2 min. f, m, g |
D2 max. |
Nenn- Kern-F D1 |
f |
m, g |
f |
m |
g |
D1 min. |
D1 max. |
D1 min. |
D1 max. |
1/4 | 20 | 1,270 | 6,350 | 5,537 | 5,613 | 5,650 | 5,726 | 4,724 | 4,820 | 5,104 | 4,744 | 5,224 |
5/16 | 18 | 1,411 | 7,938 | 7,034 | 7,114 | 7,153 | 7,233 | 6,131 | 6,231 | 6,531 | 6,151 | 6,661 |
3/8 | 16 | 1,588 | 9,525 | 8,509 | 8,593 | 8,636 | 8,720 | 7,492 | 7,596 | 7,912 | 7,512 | 8,052 |
(7/16) | 14 | 1,814 | 11,113 | 9,951 | 10,041 | 10,086 | 10,175 | 8,789 | 8,899 | 9,229 | 8,809 | 9,379 |
1/2 | 12 | 2,117 | 12,700 | 11,345 | 11,442 | 11,491 | 11,589 | 9,990 | 10,112 | 10,460 | 10,015 | 10,610 |
5/8 | 11 | 2,309 | 15,876 | 14,397 | 14,499 | 14,550 | 14,652 | 12,918 | 13,050 | 13,428 | 12,948 | 13,598 |
3/4 | 10 | 2,540 | 19,051 | 17,424 | 17,531 | 17,584 | 17,691 | 15,798 | 15,938 | 16,348 | 15,831 | 16,538 |
7/8 | 9 | 2,822 | 22,226 | 20,419 | 20,532 | 20,588 | 20,700 | 18,611 | 18,760 | 19,201 | 18,647 | 19,411 |
1 | 8 | 3,175 | 25,401 | 23,368 | 23,487 | 23,547 | 23,666 | 21,335 | 21,494 | 21,965 | 21,375 | 22,185 |
11/8 | 7 | 3,629 | 28,576 | 26,253 | 26,381 | 26,444 | 26,572 | 23,929 | 24,104 | 24,629 | 23,976 | 24,879 |
11/4 | 7 | 3,629 | 31,751 | 29,428 | 29,556 | 29,619 | 29,747 | 27,104 | 27,279 | 27,804 | 27,151 | 28,054 |
13/8 | 6 | 4,233 | 34,926 | 32,215 | 32,353 | 32,422 | 32,560 | 29,505 | 29,696 | 30,275 | 29,558 | 30,555 |
11/2 | 6 | 4,233 | 38,101 | 35,391 | 35,529 | 35,598 | 35,736 | 32,680 | 32,871 | 33,450 | 32,733 | 33,730 |
15/8 | 5 | 5,080 | 41,277 | 38,024 | 38,175 | 38,251 | 38,402 | 34,771 | 34,985 | 35,611 | 34,834 | 35,921 |
13/4 | 5 | 5,080 | 44,452 | 41,199 | 41,350 | 41,426 | 41,577 | 37,946 | 38,160 | 38,786 | 38,009 | 39,096 |
(17/8) | 41/2 | 5,645 | 47,627 | 44,012 | 44,171 | 44,251 | 44,410 | 40,398 | 40,627 | 41,308 | 40,468 | 41,648 |
2 | 41/2 | 5,645 | 50,802 | 47,187 | 47,346 | 47,426 | 47,585 | 43,573 | 43,802 | 44,483 | 43,643 | 44,823 |
21/4 | 4 | 6,350 | 57,152 | 53,086 | 53,255 | 53,339 | 53,508 | 49,020 | 49,269 | 50,030 | 49,100 | 50,420 |
21/2 | 4 | 6,350 | 63,502 | 59,436 | 59,605 | 59,689 | 59,858 | 55,370 | 55,619 | 56,380 | 55,450 | 56,770 |
23/4 | 31/2 | 7,257 | 69,853 | 65,205 | 65,385 | 65,476 | 65,656 | 60,558 | 60,828 | 61,668 | 60,648 | 62,108 |
3 | 31/2 | 7,257 | 76,203 | 71,556 | 71,736 | 71,827 | 72,007 | 66,909 | 67,179 | 68,019 | 66,999 | 68,459 |
31/4 | 31/4 | 7,816 | 82,553 | 77,548 | 77,735 | 77,829 | 78,016 | 72,544 | 72,828 | 73,754 | 72,641 | 74,244 |
31/2 | 31/4 | 7,816 | 88,903 | 83,899 | 84,086 | 84,180 | 84,367 | 78,894 | 79,178 | 80,104 | 78,991 | 80,594 |
33/4 | 3 | 8,467 | 95,254 | 89,832 | 90,027 | 90,124 | 90,319 | 84,410 | 84,708 | 85,690 | 84,513 | 86,210 |
4 | 3 | 8,467 | 101,604 | 96,182 | 96,377 | 96,474 | 96,669 | 90,760 | 91,058 | 92,040 | 90,863 | 92,560 |
|
Gewinde- Nenn-F
(inch) |
Gang- zahl/1"
Z |
Steigg.
P |
Bolzenaußen-F d |
Bolzenflanken-F d2 |
Bolzenkern-F d1 |
Nenn- Außen-F d |
d max.
f, m, g |
d min. |
Nenn-Fl.F =d2 max. f, m, g |
d2min. |
Nenn-Kern-F =d1max. f, m, g |
d1 min. |
f |
m, g |
f |
m |
g |
f |
m, g |
1/4 | 20 | 1,270 | 6,350 | 6,330 | 6,200 | 6,000 | 5,537 | 5,461 | 5,424 | 5,348 | 4,724 | 4,572 | 4,422 |
5/16 | 18 | 1,441 | 7,938 | 7,918 | 7,800 | 7,600 | 7,034 | 6,954 | 6,915 | 6,835 | 6,131 | 5,971 | 5,813 |
3/8 | 16 | 1,588 | 9,525 | 9,505 | 9,400 | 9,100 | 8,509 | 8,425 | 8,382 | 8,298 | 7,492 | 7,324 | 7,154 |
(7/16) | 14 | 1,814 | 11,113 | 11,093 | 10,900 | 10,700 | 9,951 | 9,861 | 9,816 | 9,727 | 8,789 | 8,609 | 8,430 |
1/2 | 12 | 2,117 | 12,700 | 12,675 | 12,500 | 12,200 | 11,345 | 11,248 | 11,199 | 11,101 | 9,990 | 9,796 | 9,600 |
5/8 | 11 | 2,309 | 15,876 | 15,846 | 15,700 | 15,400 | 14,397 | 14,295 | 14,244 | 14,142 | 12,918 | 12,714 | 12,510 |
3/4 | 10 | 2,540 | 19,051 | 19,018 | 18,850 | 18,500 | 17,424 | 17,317 | 17,264 | 17,157 | 15,798 | 15,584 | 15,371 |
7/8 | 9 | 2,822 | 22,226 | 22,190 | 21,950 | 21,600 | 20,419 | 20,306 | 20,250 | 20,138 | 18,611 | 18,385 | 18,161 |
1 | 8 | 3,175 | 25,401 | 25,361 | 25,150 | 24,800 | 23,368 | 23,249 | 23,189 | 23,070 | 21,335 | 21,097 | 20,858 |
11/8 | 7 | 3,629 | 28,576 | 28,529 | 28,350 | 27,900 | 26,253 | 26,125 | 26,062 | 25,934 | 23,929 | 23,673 | 23,419 |
11/4 | 7 | 3,629 | 31,751 | 31,704 | 31,550 | 31,000 | 29,428 | 29,300 | 29,237 | 29,109 | 27,104 | 26,848 | 26,594 |
13/8 | 6 | 4,233 | 34,926 | 34,873 | 34,650 | 34,100 | 32,215 | 32,077 | 32,008 | 31,870 | 29,505 | 29,229 | 28,953 |
11/2 | 6 | 4,233 | 38,101 | 38,048 | 37,850 | 37,300 | 35,391 | 35,253 | 35,184 | 35,046 | 32,680 | 32,404 | 32,128 |
15/8 | 5 | 5,080 | 41,277 | 41,214 | 41,050 | 40,300 | 38,024 | 37,873 | 37,797 | 37,646 | 34,771 | 34,469 | 34,166 |
13/4 | 5 | 5,080 | 44,452 | 44,389 | 44,150 | 43,500 | 41,199 | 41,048 | 40,972 | 40,821 | 37,946 | 37,644 | 37,341 |
(17/8) | 41/2 | 5,645 | 47,627 | 47,557 | 47,350 | 46,600 | 44,012 | 43,853 | 43,773 | 43,614 | 40,398 | 40,080 | 39,761 |
2 | 41/2 | 5,645 | 50,802 | 50,732 | 50,500 | 49,800 | 47,187 | 47,028 | 46,948 | 46,789 | 43,573 | 43,255 | 42,936 |
21/4 | 4 | 6,350 | 57,152 | 57,072 | 56,800 | 56,200 | 53,086 | 52,917 | 52,883 | 52,664 | 49,020 | 48,682 | 48,345 |
21/2 | 4 | 6,350 | 63,502 | 63,422 | 63,200 | 62,500 | 59,436 | 59,267 | 59,183 | 59,014 | 55,370 | 55,032 | 54,695 |
23/4 | 31/2 | 7,257 | 69,853 | 69,763 | 69,500 | 68,800 | 65,205 | 65,025 | 64,934 | 64,754 | 60,558 | 60,198 | 59,836 |
3 | 31/2 | 7,257 | 76,203 | 76,113 | 75,900 | 75,100 | 71,556 | 71,376 | 71,285 | 71,105 | 66,909 | 66,549 | 66,187 |
31/4 | 31/4 | 7,816 | 82,553 | 82,456 | 82,200 | 81,400 | 77,548 | 77,361 | 77,267 | 77,080 | 72,544 | 72,170 | 71,795 |
31/2 | 31/4 | 7,816 | 88,903 | 88,806 | 88,600 | 87,700 | 83,899 | 83,712 | 83,618 | 83,431 | 78,894 | 78,520 | 78,145 |
33/4 | 3 | 8,467 | 95,254 | 95,151 | 94,900 | 94,100 | 89,832 | 89,637 | 89,540 | 89,345 | 84,410 | 84,020 | 83,631 |
4 | 3 | 8,467 | 101,604 | 101,501 | 101,300 | 100,400 | 96,182 | 95,987 | 95,890 | 95,695 | 90,760 | 90,370 | 89,981 |
|
