Metrisches ISO-Feingewinde, Gewindegrenzmaße für P0,35 bis P6

Fortsetzung DIN 13 Teil 21 - 23

Bolzengewinde

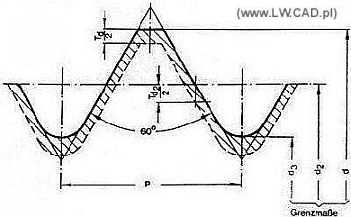

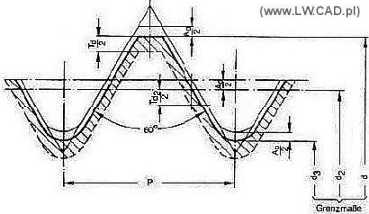

Bolzengewinde mit Grundabmaß 0 (Toleranzlage h)	Bolzengewinde mit negativen Grundabmaßen (Toleranzlage e,g)	d = Bolzenaußen - F d2=Bolzenflanken-F d3=Bolzenkern-F Ao , Td , Td2 - siehe Seite 165/166
Maße in mm

Gewinde		4h					6g					6e
Nenn- F	Steigg P	d		d2		d3 max.	d		d2		d3 max.	d		d2		d3 max.
		max.	min.	max.	min.		max.	min.	max.	min.		max.	min.	max.	min.
M 2,5x0,35		2,500	2,447	2,273	2,233	2,070	2,481	2,396	2,254	2,191	2,051	2,454	2,369	2,227	2,164	2,024
M 3x0,35		3,000	2,947	2,773	2,731	2,570	2,981	2,896	2,754	2,687	2,551	2,954	2,869	2,727	2,660	2,524
M 3,5x0,35		3,500	3,447	3,273	3,231	3,070	3,481	3,396	3,254	3,187	3,051	3,454	3,369	3,227	3,160	3,024
.
M 4x0,5		4,000	3,933	3,675	3,627	3,387	3,980	3,874	3,655	3,580	3,367	3,950	3,844	3,625	3,550	3,337
M 4,5x0,5		4,500	4,433	4,175	4,127	3,887	4,480	4,374	4,155	4,080	3,867	4,450	4,344	4,125	4,050	3,837
M 5x0,5		5,000	4,933	4,675	4,627	4,387	4,980	4,874	4,655	4,580	4,367	4,950	4,844	4,625	4,550	4,337
M 5,5x0,5		5,500	5,433	5,175	5,127	4,887	5,480	5,374	5,155	5,080	4,867	5,450	5,344	5,125	5,050	4,837
M 6x0,5		6,000	5,933	5,675	5,622	5,387	5,980	5,874	5,655	5,570	5,367	5,950	5,844	5,625	5,540	5,337
.
M 6x0,75		6,000	5,910	5,513	5,450	5,080	5,978	5,838	5,491	5,391	5,058	5,944	5,804	5,457	5,357	5,024
M 7x0,75		7,000	6,910	6,513	6,450	6,080	6,978	6,838	6,491	6,391	6,058	6,944	6,804	6,457	6,357	6,024
M 8x0,75		8,000	7,910	7,513	7,450	7,080	7,978	7,838	7,491	7,391	7,058	7,944	7,804	7,457	7,357	7,024
M 9x0,75		9,000	8,910	8,513	8,450	8,080	8,978	8,838	8,491	8,391	8,058	8,944	8,804	8,457	8,357	8,024
M 10x0,75		10,000	9,910	9,513	9,450	9,080	9,978	9,838	9,491	9,391	9,058	9,944	9,804	9,457	9,357	9,024
M 11x0,75		11,000	10,910	10,513	10,450	10,080	10,978	10,838	10,491	10,391	10,058	10,944	10,804	10,457	10,357	10,024
M 12x0,75		12,000	12,910	11,513	11,446	11,080	11,978	11,838	11,491	11,385	11,058	11,944	11,804	11,457	11,351	11,024
.
M 8x1		8,000	7,888	7,350	7,279	6,773	7,974	7,794	7,324	7,212	6,747	7,940	7,760	7,290	7,178	6,713
M 9x1		9,000	8,888	8,350	8,279	7,773	8,974	8,794	8,324	8,212	7,747	8,940	8,760	8,290	8,178	7,713
M 10x1		10,000	9,888	9,350	9,279	8,773	9,974	9,794	9,324	9,212	8,747	9,940	9,760	9,290	9,178	8,713
M 11x1		11,000	10,888	10,350	10,279	9,773	10,974	10,794	10,234	10,212	9,747	10,940	10,760	10,290	10,178	9,713
M 12x1		12,000	11,888	11,350	11,275	10,773	11,974	11,794	11,324	11,206	10,747	11,940	11,760	11,290	11,172	10,713
M 14x1		14,000	13,888	13,350	13,275	12,773	13,974	13,794	13,324	13,206	12,747	13,940	13,760	13,290	13,172	12,713
M 16x1		16,000	15,888	15,350	15,275	14,773	15,974	15,794	15,324	15,206	14,747	15,940	15,760	15,290	15,172	14,713
M 18x1		18,000	17,888	17,350	17,275	16,773	17,974	17,794	17,324	17,206	16,747	17,940	17,760	17,290	17,172	16,713
M 20x1		20,000	19,888	19,350	19,275	18,773	19,974	19,794	19,324	19,206	18,747	19,940	19,760	19,290	19,172	18,713
M 22x1		22,000	21,888	21,350	21,275	20,773	21,974	21,794	21,324	21,206	20,747	21,940	21,760	21,290	21,172	20,713
M 24x1		24,000	23,888	23,350	23,270	22,773	23,974	23,794	23,324	23,199	22,747	23,940	23,760	23,290	23,165	22,713
M 27x1		27,000	26,888	26,350	26,270	25,773	26,974	26,794	26,234	26,199	25,747	26,940	26,760	26,290	26,165	25,713
M 30x1		30,000	29,888	29,350	29,270	28,773	29,974	29,794	29,324	29,199	28,747	29,940	29,760	29,290	29,165	28,713
.
M 10x1,25		10,000	9,868	9,188	9,113	8,466	9,972	9,760	9,160	9,042	8,438	9,937	9,725	9,125	9,007	8,403
M 12x1,25		12,000	11,868	11,188	11,103	10,466	11,972	11,760	11,160	11,028	10,438	11,937	11,725	11,125	10,993	10,403
.
M 12x1,5		12,000	11,850	11,026	10,936	10,160	11,968	11,732	10,994	10,854	10,128	11,933	11,697	10,959	10,819	10,093
M 14x1,5		14,000	13,850	13,026	12,936	12,160	13,968	13,732	12,994	12,854	12,128	13,933	13,697	12,959	12,819	12,093
M 16x1,5		16,000	15,850	15,026	14,936	14,160	15,968	15,732	14,994	14,854	14,128	15,933	15,697	14,959	14,819	14,093
M 18x1,5		18,000	17,850	17,026	16,936	16,160	17,968	17,732	16,994	16,854	16,128	17,933	17,697	16,959	16,819	16,093
M 20x1,5		20,000	19,850	19,026	18,936	18,160	19,968	19,732	18,994	18,854	18,128	19,933	19,697	18,959	18,819	18,093
M 22x1,5		22,000	21,850	21,026	20,936	20,160	21,968	21,732	20,994	20,854	20,128	21,933	21,697	20,959	20,819	20,093
M 24x1,5		24,000	23,850	23,026	22,931	22,160	23,968	23,732	22,994	22,844	22,128	23,933	23,697	22,959	22,809	22,093
M 27x1,5		27,000	26,850	26,026	25,931	25,160	26,968	26,732	25,994	25,844	25,128	26,933	26,697	25,959	25,809	25,093
M 30x1,5		30,000	29,850	29,026	28,931	28,160	29,968	29,732	28,994	28,844	28,128	29,933	29,697	28,959	28,809	28,093
M 33x1,5		33,000	32,850	32,026	31,931	31,160	32,968	32,732	31,994	31,844	31,128	32,933	32,697	31,959	31,809	31,093
M 36x1,5		36,000	35,850	35,026	34,931	34,160	35,968	35,732	34,994	34,844	34,128	35,933	35,697	34,959	34,809	34,093
M 39x1,5		39,000	38,850	38,026	37,931	37,160	38,968	38,732	37,994	37,844	37,128	38,933	38,697	37,959	37,809	37,093
M 42x1,5		42,000	41,850	41,026	40,931	40,160	41,968	41,732	40,994	40,844	40,128	41,933	41,697	40,959	40,809	40,093
M 45x1,5		45,000	44,850	44,026	43,931	43,160	44,968	44,732	43,994	43,844	43,128	44,933	44,697	43,959	43,809	43,093
M 48x1,5		48,000	47,850	47,026	46,926	46,160	47,968	47,732	46,994	46,834	46,128	47,933	47,697	46,959	46,799	46,093
M 52x1,5		52,000	51,850	51,026	50,926	50,160	51,968	51,732	50,994	50,834	50,128	51,933	51,697	50,959	50,799	50,093
M 56x1,5		56,000	55,850	55,026	54,926	54,160	55,968	55,732	54,994	54,834	54,128	55,933	55,697	54,959	54,799	54,093
M 60x1,5		60,000	59,850	59,026	58,926	58,160	59,968	59,732	58,994	58,834	58,128	59,933	59,697	58,959	58,799	58,093

172

---

Opracowanie : Magdalena Skrobot i Wiesław Legucki - na podstawie materiałów firmy EMUGE
