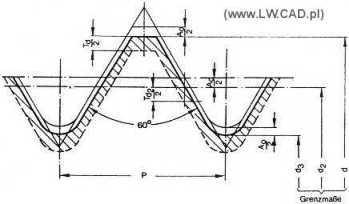

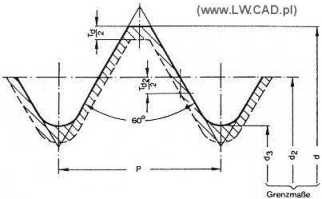

Gewinde- |
4 h |
6 g |
6 e |
Nenn- F |
Steigg. P |
d |
d2 |
d3 max. |
d |
d2 |
d3 max. |
d |
d2 |
d3 max. |
max. |
min. |
max. |
min. |
max. |
min. |
max. |
min. |
max. |
min. |
max. |
min. |
M 1,6 | 0,35 | 1,600 | 1,547 | 1,373 | 1,333 | 1,170 | 1,581 | 1,496 | 1,354 | 1,291 | 1,151 | 1,554 | 1,469 | 1,327 | 1,264 | 1,124 |
M 1,8 | 0,35 | 1,800 | 1,747 | 1,573 | 1,533 | 1,370 | 1,781 | 1,696 | 1,554 | 1,491 | 1,351 | 1,754 | 1,669 | 1,527 | 1,464 | 1,324 |
M 2 | 0,4 | 2,000 | 1,940 | 1,740 | 1,698 | 1,509 | 1,981 | 1,886 | 1,721 | 1,654 | 1,490 | 1,952 | 1,857 | 1,692 | 1,625 | 1,461 |
M 2,2 | 0,45 | 2,200 | 2,137 | 1,908 | 1,863 | 1,648 | 2,180 | 2,080 | 1,888 | 1,817 | 1,628 | 2,152 | 2,052 | 1,860 | 1,789 | 1,600 |
M 2,5 | 0,45 | 2,500 | 2,437 | 2,208 | 2,163 | 1,948 | 2,480 | 2,380 | 2,188 | 2,117 | 1,928 | 2,452 | 2,352 | 2,160 | 2,089 | 1,900 |
M 3 | 0,5 | 3,000 | 2,933 | 2,675 | 2,627 | 2,387 | 2,980 | 2,874 | 2,655 | 2,580 | 2,367 | 2,950 | 2,844 | 2,625 | 2,550 | 2,337 |
M 3,5 | 0,6 | 3,500 | 3,420 | 3,110 | 3,057 | 2,764 | 3,479 | 3,354 | 3,089 | 3,004 | 2,743 | 3,447 | 3,322 | 3,057 | 2,972 | 2,711 |
M 4 | 0,7 | 4,000 | 3,910 | 3,545 | 3,489 | 3,141 | 3,978 | 3,838 | 3,523 | 3,433 | 3,119 | 3,944 | 3,804 | 3,489 | 3,399 | 3,085 |
M 4,5 | 0,75 | 4,500 | 4,410 | 4,013 | 3,957 | 3,580 | 4,478 | 4,338 | 3,991 | 3,901 | 3,558 | 4,444 | 4,304 | 3,957 | 3,867 | 3,524 |
M 5 | 0,8 | 5,000 | 4,905 | 4,480 | 4,420 | 4,019 | 4,976 | 4,826 | 4,456 | 4,361 | 3,995 | 4,940 | 4,790 | 4,420 | 4,325 | 3,959 |
M 6 | 1 | 6,000 | 5,888 | 5,350 | 5,279 | 4,773 | 5,974 | 5,794 | 5,324 | 5,212 | 4,747 | 5,940 | 5,760 | 5,290 | 5,178 | 4,713 |
M 7 | 1 | 7,000 | 6,888 | 6,350 | 6,279 | 5,773 | 6,974 | 6,794 | 6,324 | 6,212 | 5,747 | 6,940 | 6,760 | 6,290 | 6,178 | 5,713 |
M 8 | 1,25 | 8,000 | 7,868 | 7,188 | 7,113 | 6,466 | 7,972 | 7,760 | 7,160 | 7,042 | 6,438 | 7,937 | 7,725 | 7,125 | 7,007 | 6,403 |
M 9 | 1,25 | 9,000 | 8,868 | 8,188 | 8,113 | 7,466 | 8,972 | 8,760 | 8,160 | 8,042 | 7,438 | 8,937 | 8,725 | 8,125 | 8,007 | 7,403 |
M 10 | 1,5 | 10,000 | 9,850 | 9,026 | 8,941 | 8,160 | 9,968 | 9,732 | 8,994 | 8,862 | 8,128 | 9,933 | 9,697 | 8,959 | 8,827 | 8,093 |
M 11 | 1,5 | 11,000 | 10,850 | 10,026 | 9,941 | 9,160 | 10,968 | 10,732 | 9,994 | 9,862 | 9,128 | 10,933 | 10,697 | 9,959 | 9,827 | 9,093 |
M 12 | 1,75 | 12,000 | 11,830 | 10,863 | 10,768 | 9,853 | 11,966 | 11,701 | 10,829 | 10,679 | 9,819 | 11,929 | 11,664 | 10,792 | 10,642 | 9,782 |
M 14 | 2 | 14,000 | 13,820 | 12,701 | 12,601 | 11,546 | 13,962 | 12,682 | 12,663 | 12,503 | 11,508 | 13,929 | 13,649 | 12,630 | 12,470 | 11,475 |
M 16 | 2 | 16,000 | 15,820 | 14,701 | 14,601 | 13,546 | 15,962 | 15,682 | 14,663 | 14,503 | 13,508 | 15,929 | 15,649 | 14,630 | 14,470 | 13,475 |
M 18 | 2,5 | 18,000 | 17,788 | 16,376 | 16,270 | 14,933 | 17,958 | 17,623 | 16,334 | 16,164 | 14,891 | 17,920 | 17,585 | 16,296 | 16,126 | 14,853 |
M 20 | 2,5 | 20,000 | 19,788 | 18,376 | 18,270 | 16,933 | 19,958 | 19,623 | 18,334 | 18,164 | 16,891 | 19,920 | 19,585 | 18,296 | 18,126 | 16,853 |
M 22 | 2,5 | 22,000 | 21,788 | 20,376 | 20,270 | 18,933 | 21,958 | 21,623 | 20,334 | 20,164 | 18,891 | 21,920 | 21,585 | 20,296 | 20,126 | 18,853 |
M 24 | 3 | 24,000 | 23,764 | 22,051 | 21,926 | 20,319 | 23,952 | 23,577 | 22,003 | 21,803 | 20,271 | 23,915 | 23,540 | 21,966 | 21,766 | 20,234 |
M 27 | 3 | 27,000 | 26,764 | 25,051 | 24,926 | 23,319 | 26,952 | 26,577 | 25,003 | 24,803 | 23,271 | 26,915 | 26,540 | 24,966 | 24,766 | 23,234 |
M 30 | 3,5 | 30,000 | 29,735 | 27,727 | 27,595 | 25,706 | 29,947 | 29,522 | 27,674 | 27,462 | 25,653 | 29,910 | 29,485 | 27,637 | 27,425 | 25,616 |
M 33 | 3,5 | 33,000 | 32,735 | 30,727 | 30,595 | 28,706 | 32,947 | 32,522 | 30,674 | 30,462 | 28,653 | 32,910 | 32,485 | 30,637 | 30,425 | 28,616 |
M 36 | 4 | 36,000 | 35,700 | 33,402 | 33,262 | 31,093 | 35,940 | 35,465 | 33,342 | 33,118 | 31,033 | 35,905 | 35,430 | 33,307 | 33,083 | 30,998 |
M 39 | 4 | 39,000 | 38,700 | 36,402 | 36,262 | 34,093 | 38,940 | 38,465 | 36,342 | 36,118 | 34,033 | 38,905 | 38,430 | 36,307 | 36,083 | 33,998 |
M 42 | 4,5 | 42,000 | 41,685 | 39,077 | 38,927 | 36,479 | 41,937 | 41,437 | 39,014 | 38,778 | 36,416 | 41,900 | 41,400 | 38,977 | 38,741 | 36,379 |
M 45 | 4,5 | 45,000 | 44,685 | 42,077 | 41,927 | 39,479 | 44,937 | 44,437 | 42,014 | 41,778 | 39,416 | 44,900 | 44,400 | 41,977 | 41,741 | 39,379 |
M 48 | 5 | 48,000 | 47,665 | 44,752 | 44,592 | 41,866 | 47,929 | 47,399 | 44,681 | 44,431 | 41,795 | 47,894 | 47,364 | 44,646 | 44,396 | 41,760 |
M 52 | 5 | 52,000 | 51,665 | 48,752 | 48,592 | 45,866 | 51,929 | 51,399 | 48,681 | 48,431 | 45,795 | 51,894 | 51,364 | 48,646 | 48,396 | 45,760 |
M 56 | 5,5 | 56,000 | 55,645 | 52,428 | 52,258 | 49,252 | 55,925 | 55,365 | 52,353 | 52,088 | 49,177 | 55,888 | 55,328 | 52,316 | 52,051 | 49,140 |
M 60 | 5,5 | 60,000 | 59,645 | 56,428 | 56,258 | 53,252 | 59,925 | 59,365 | 56,353 | 56,088 | 53,177 | 59,888 | 59,328 | 56,316 | 56,051 | 53,140 |
M 64 | 6 | 64,000 | 63,625 | 60,103 | 59,923 | 56,639 | 63,920 | 63,320 | 60,023 | 59,743 | 56,559 | 63,882 | 63,282 | 59,985 | 59,705 | 56,521 |
M 68 | 6 | 68,000 | 67,625 | 64,103 | 63,923 | 60,639 | 67,920 | 67,320 | 64,023 | 63,743 | 60,559 | 67,882 | 67,282 | 63,985 | 63,705 | 60,521 |
|
